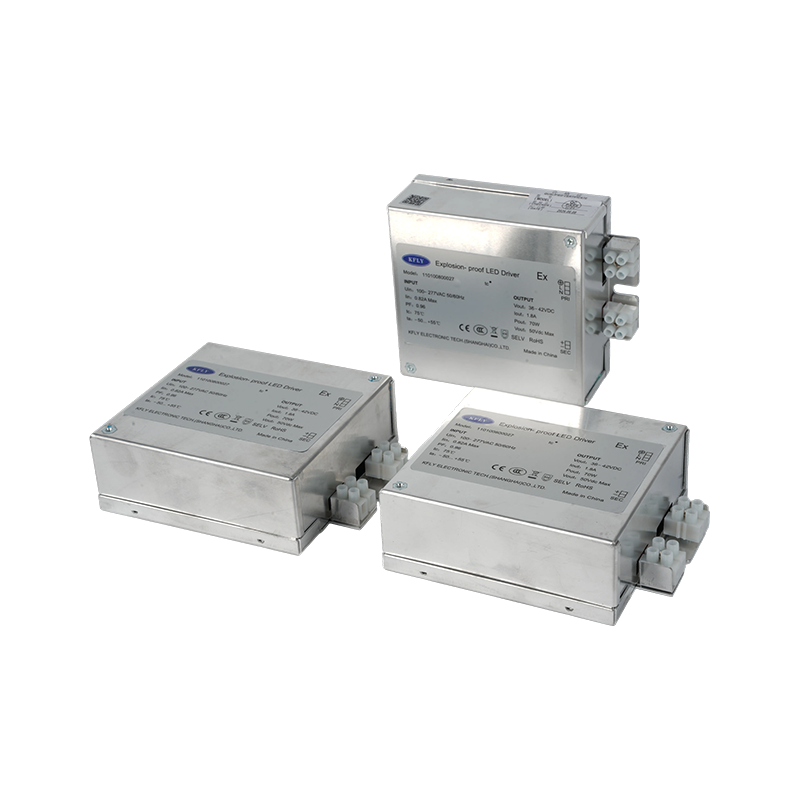

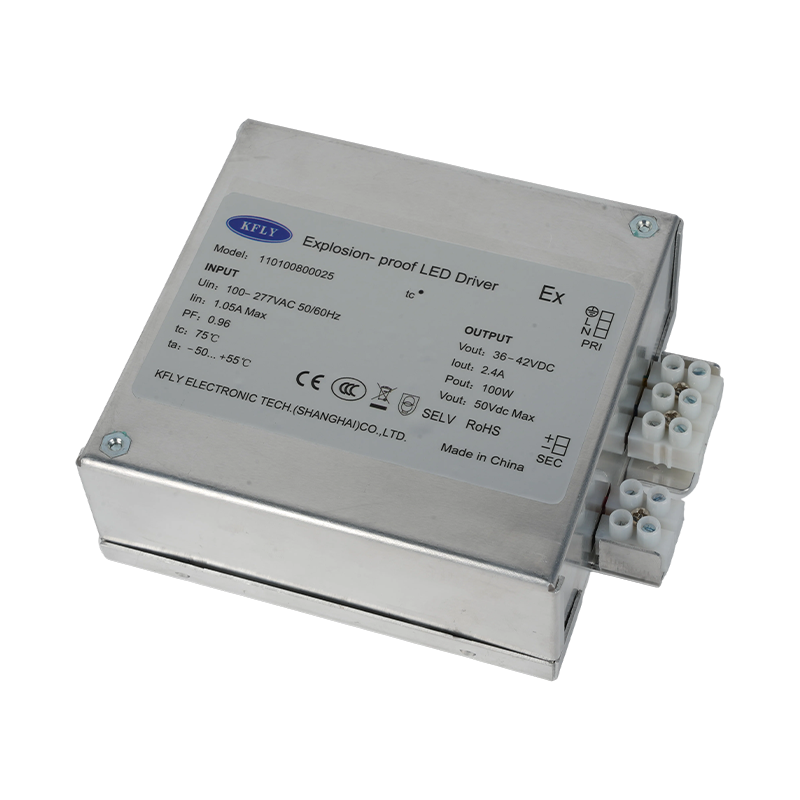

Explosion-proof Encapsulated LED Control Unit
Highlights and Features
1. DC 36–42V output voltage; constant current output design
2. Efficiency up to 90%
3. Isolated, high power factor architecture
4. Suitable for explosion-proof lighting applications
5. Certified for electrical safety
6. Suitable for Class I luminaires
7. Suitable for operating environments as low as -50°C
8. 5-year warranty
Introduction
KFLY’s 70–120W series of fixed-output-current LED drivers are suitable for both explosion-proof and general lighting applications.
These drivers meet global certification standards and feature SELV voltage output, ensuring safety even in the event of wiring or LED board damage; they are designed to Class I luminaire standards for easy installation. Additionally, their high efficiency meets energy-saving requirements, and optimal EMC performance was a key priority during development. Meticulously designed and rigorously tested, they operate reliably under diverse lighting conditions. Their exceptional robustness offers customers peace of mind and reduces maintenance costs.
Model Information
| Model No. | Input Voltage Range | Rated Output Voltage | Rated Output Current |
| 110100800027 | 100～277Vac | 36～42Vdc | 1.8A |
| 110100800016 | 1.9A | ||
| 110100800025 | 2.4A | ||
| 110100800026 | 2.9A |
Input Ratings / Characteristics
| Model No. | 110100800027 | 110100800016 | 110100800025 | 110100800026 | |
| Nominal Input Voltage | 120～277 Vac | ||||
| Input Voltage Range | 108～305 Vac | ||||
| Nominal Input Frequency | 50～60 Hz | ||||
| Input Frequency Range | 47～63 Hz | ||||
| Input Current (typ.) | 0.35 typ. | 0.4 typ. | 0.5 typ. | 0.6 typ. | |
| Efficiency ¹) @ 230Vac | 90.1% typ. | 90.3% typ. | 90.7% typ. | 91.2% typ. | |
| Inrush Current Peak >50%, Duration | 36.4A / 360us | ||||
| Max. Quantity of Drivers per Circuit Breaker | B16 | 20 pcs | 17 pcs | 13 pcs | 10 pcs |
| C16 | 25 pcs | 22 pcs | 17 pcs | 13 pcs | |
| Power Factor @ Full Load | > 0.95 | ||||
| Total Harmonic Distortion @ Full Load | Complies with IEC 61000-3-2 Class C | ||||
| Leakage Current | < 0.7mA @ 230Vac | ||||
1) 100% load (typical value), tested after 30-minute warm-up.
Output Ratings / Characteristics
| Model No. | 110100800027 | 110100800016 | 110100800025 | 110100800026 |
| Rated Output Voltage | 36～42 Vdc | |||
| Output Current Range | 1.8A | 1.9A | 2.4A | 2.9A |
| Max. No-load Output Voltage | 46Vdc | |||
| Max. Output Power | 70W | 80W | 100W | 120W |
| Output Voltage Tolerance | ± 3% | |||
| Line Regulation | ± 1% | |||
| Load Regulation | ± 3% | |||
| Output Ripple | 900mV | |||
| Rise Time | < 50ms | |||
| Start-up Time | < 1.0s | |||
Mechanical Specifications
| Model No. | 110100800027 | 110100800016 | 110100800025 | 110100800026 |
| Housing | Aluminum alloy | |||
| Unit Weight [kg][lb] | 0.63 1.39 |
0.66 1.46 |
||
| Cooling System | Natural convection cooling | |||
| Commercial Carton: Qty per Carton | 16 pcs | |||
| Commercial Carton: Weight per Carton [kg][lb] | 10 22 |
10.6 23.4 |
||
| Input Terminal | 3P PA8HDS | |||
| Output Terminal | 2P PA8HDS | |||
| Noise (at 30cm distance) | Sound Pressure Level (SPL) ＜ 24 dBA | |||
Environmental Specifications
| Model No. | 110100800027 | 110100800016 | 110100800025 | 110100800026 | |
| Ambient Temperature | Operating | -40°C to +55°C | |||
| Storage | -40°C to +85°C | ||||
| Max. Case Temperature (Tc) | +85°C | ||||
| Case Temperature (Tc) for Lifetime Test | +80°C | 75°C | |||
| Relative Humidity | Operating | 10 to 90% RH (non-condensing) | |||
| Storage | 5 to 95% RH (non-condensing) | ||||
| Environmental Rating | IP54; suitable for dry and damp environments | ||||
| Operating Altitude | Up to 5000 meters | ||||
Protection Functions
| Model No. | 110100800027 | 110100800016 | 110100800025 | 110100800026 |
| Overvoltage Protection | Auto-recovery after fault removal | |||
| Overload/Overcurrent Protection | Auto-recovery after fault removal | |||
| Short-circuit Protection | Auto-recovery after fault removal | |||
| Overtemperature Protection | Auto-recovery after fault removal | |||
| Suitable Luminaire Class | Class I, insulation class per IEC 60598 | |||
Reliability Data
| Model No. | 110100800027 | 110100800016 | 110100800025 | 110100800026 |
| Lifetime | 50,000 hours at lifetime-test case temperature | |||
| MTTF | 850,000 hours @ ambient temperature +45°C (per Telcordia SR-332, total failure rate below 10%) | |||
Safety Standards / Directives
| Model No. | 110100800027 | 110100800016 | 110100800025 | 110100800026 | |
| Electrical Safety | UL | UL 8750, Class P, Type "HL", Class 2 output | |||
| CSA | CAN/CSA C22.2 No.250.13 | ||||
| CB scheme | IEC 61347-1, IEC 61347-2-13, SELV outputIEC 60335-1, IEC 60335-2-89 including Annex BB, IEC 60335-2-24 including Annex CC | ||||
| CCC | GB 17625.1-2012, GB/T 17743-2021; GB 19510.1-2009, GB 19510.14-2009 |
||||
| RCM | AS 61347.2.13:2018AS/NZS 61347.1:2016 including Amendment A1 | ||||
| CE | Compliant with directives:Low Voltage Directive 2014/35/EU;EMC Directive 2014/30/EU;RoHS Directive 2011/65/EU + (EU)2015/863;ErP Directive 2009/125/EC implementing measures, EU Regulation (EU)2019/2020 | ||||
| Ex | Compliant with regulations:GB/T3836.1-2021 Explosive atmospheres Part 1: Equipment general requirements;GB/T3836.2-2021 Explosive atmospheres Part 2: Equipment protected by flameproof enclosure "d" | ||||
| Isolation | Input | Output | Enclosure | ||
| Input | N/A | 3000Vac | 1800Vac | ||
| Output | 3000Vac | N/A | 500Vac | ||
| Enclosure | 1800Vac | 500Vac | N/A | ||
EMC
| Model No. | 110100800027 | 110100800016 | 110 100800025 | 110100800026 |
| Radiated / Conducted Emission | Complies with BS EN / IEC 55015. Complies with FCC Part 15 Class A | |||
| Immunity | Complies with BS EN / IEC 61547 | |||
| Electrostatic Discharge (ESD) | IEC 61000-4-2 | ESD, Criterion A¹) or B²)Air discharge: 8kV; Contact discharge: 4kV | ||
| Radiated Immunity (RS) | IEC 61000-4-3 | RS, Criterion A¹) 80MHz-1GHz, 3V/m,1kHz sine wave / 80% AM modulation | ||
| Electrical Fast Transient / Burst (EFT/Burst) | IEC 61000-4-4 | 1kV, Criterion A¹) or B²) | ||
| Surge | IEC 61000-4-5 ANSI C62. 41 | Criterion A¹) or B²)Common-mode: 4kV; Differential-mode: 2kV1.2/50μs, 8/20μs composite wave, source impedance 2Ω (L-N),12Ω (L-PE & N-PE)Meets Category A1, with 2.5kV/100kHz ring wave, Criterion A¹) | ||
| Conducted Disturbance Immunity (CS) | IEC 61000-4-6 | 150kHz-80MHz, 3Vrms, Criterion A¹) | ||
| Power Frequency Magnetic Field Immunity (PFMF) | IEC 61000-4-8 | 3A/m, Criterion A¹) | ||
| Voltage Dips / Interruptions (Dips) | IEC 61000-4-11 | Criterion A¹) or B²); 100% dip; 0.5 cycle; self-recovery;30% dip; 10 cycles; self-recovery | ||
| Harmonic Current Emission | IEC 61000-3-2 | Class C (230Vac @ 100% load) | ||
| Voltage Fluctuation and Flicker | IEC 61000-3-3 | Pst ≤ 1.0; dmax ≤ 4%; Plt ≤ 0.65; dc ≤ 3.3%; Tmax ≤ 500ms | ||
1. Criterion A: Normal operation within specification limits.
2. Criterion B: Temporary degradation or loss of function, self‑recovery permitted.

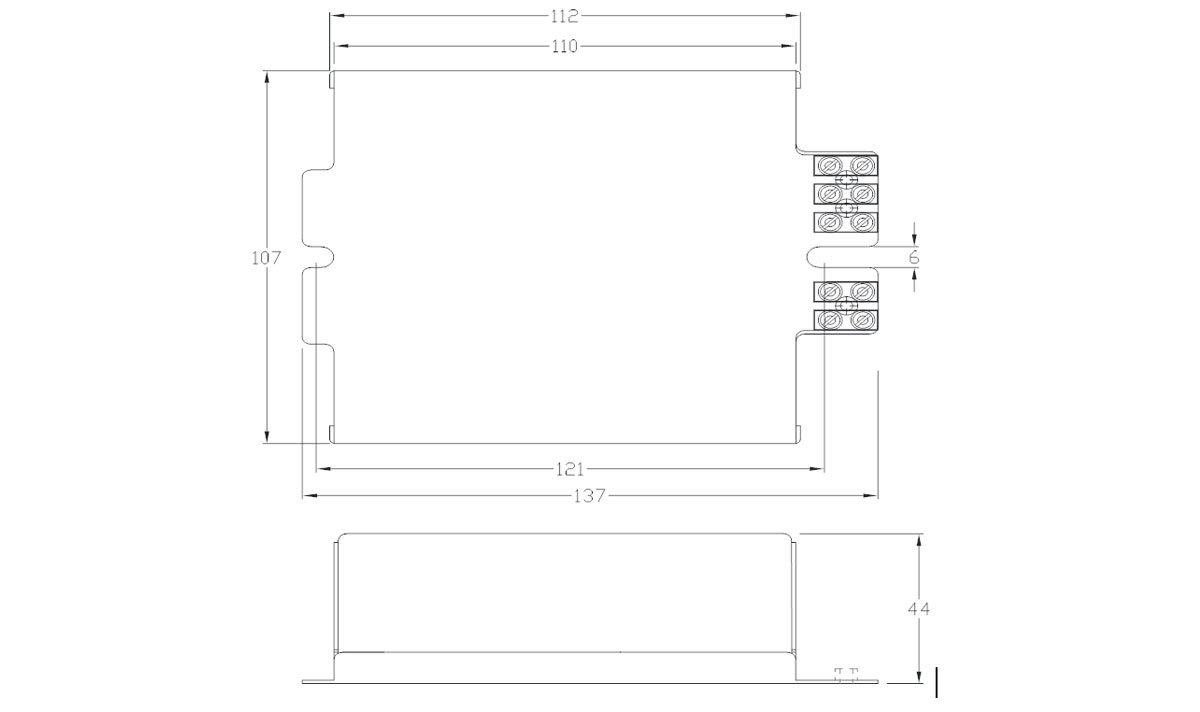

Dimension Drawing
Dimensions (L × W × H)
| 110100800027 | 137 x 107 x 44 mm |
| 110100800016 | 137 x 107 x 44 mm |
| 110100800025 | 137 x 107 x 44 mm |
| 110100800026 | 137 x 107 x 44 mm |

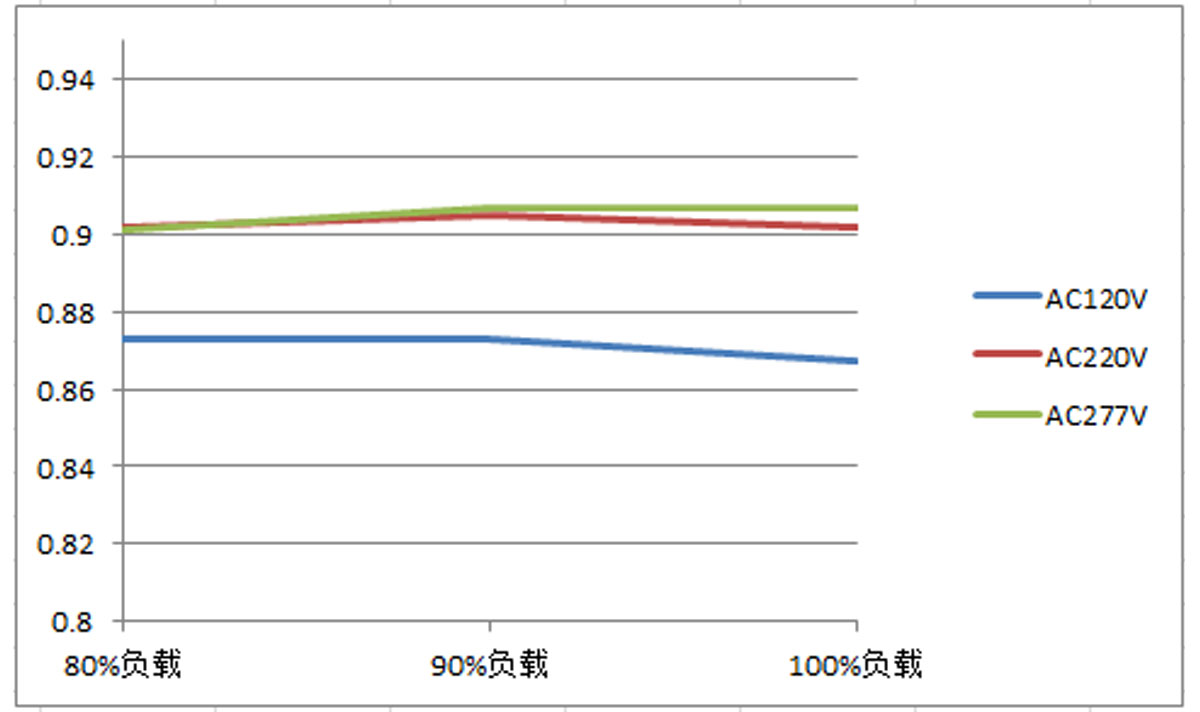

Efficiency vs. Output Power Curve

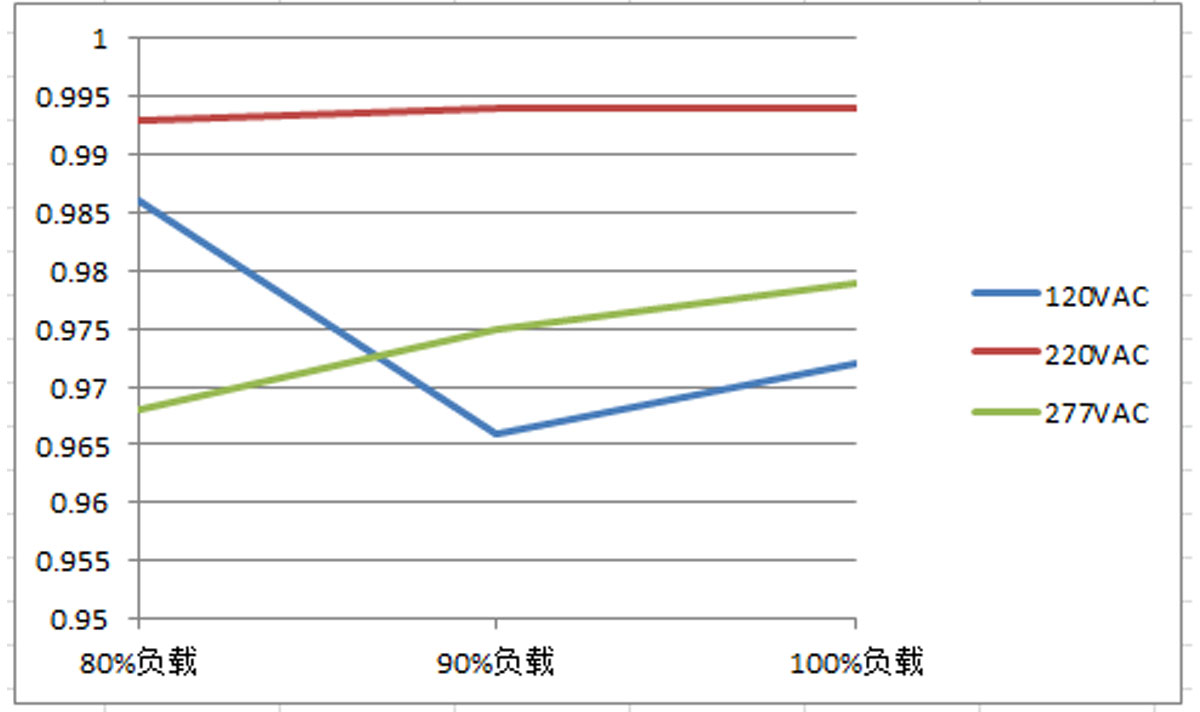

Power Factor vs. Output Power Curve

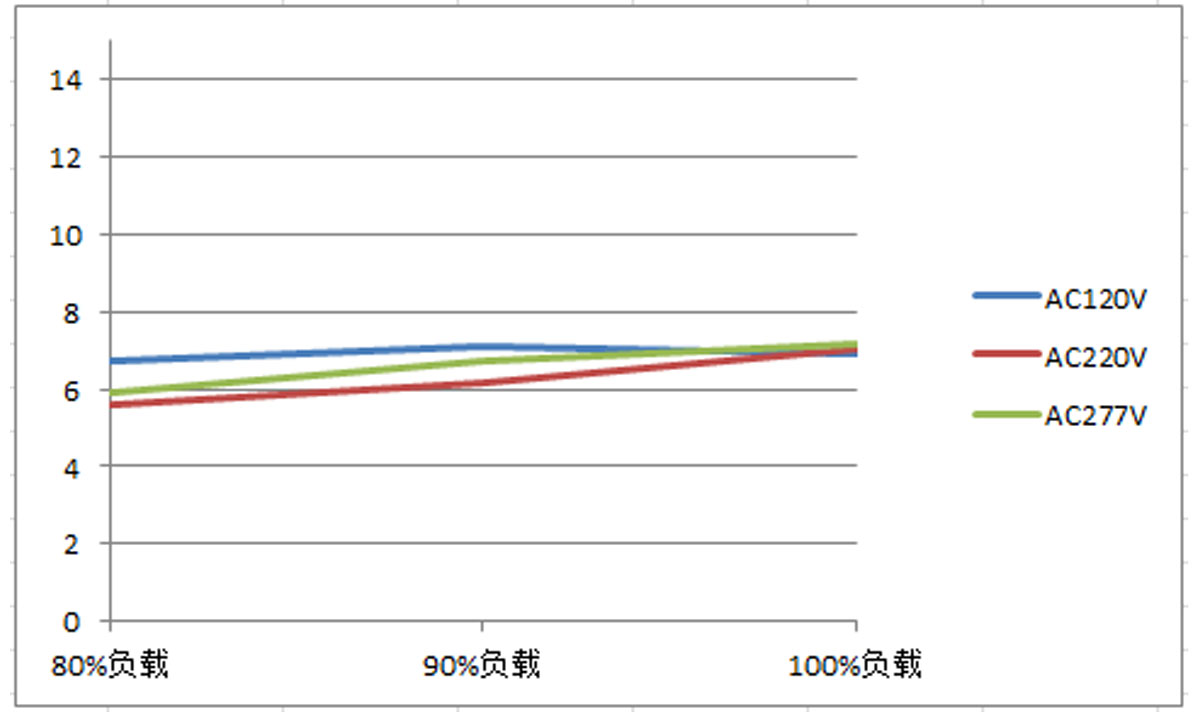

Total Harmonic Distortion (THD) vs. Output Power Curve
