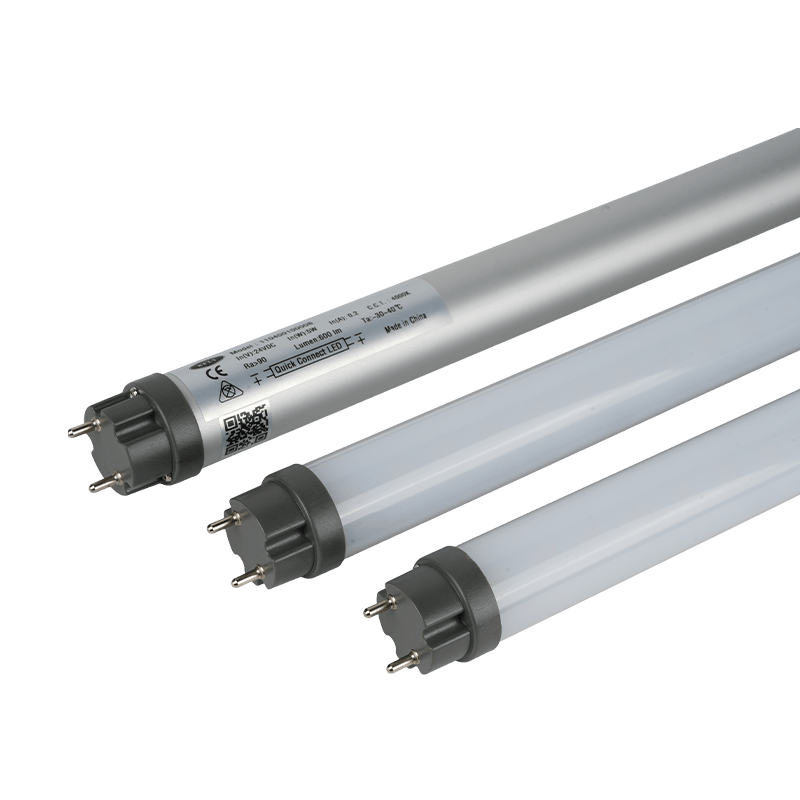

T8 LED Refrigerator Tube Light
This T8 LED Refrigerator Tube Light combines an aluminum alloy body with a PC (polycarbonate) cover. The aluminum alloy base provides strong structural support and effective heat dissipation, helping the LED components maintain stable performance over extended working hours. The PC cover adds impact resistance and protects the internal components, making the tube suitable for the frequent door openings, vibration, and daily handling common in refrigerated display cases.
KFLY the LED Cooler Lighting Bar Series lighting is an ideal energy-saving lamps, creating the commodity values of shopping experience for customers. Unique optical illumination system enabling uniform glow across displayed merchandise also reduce glare and dark spots. Using high Ra LED for long life. It has an ideal solution that high quality display lights mounting accessories with power do not flicker or color differences.
Typical Applications
Supermarket refrigerated display cases
Beverage and dairy coolers
Convenience store freezers
Vertical and horizontal commercial refrigerators
Cold storage display areas
 |
Feature
|
PRODUCT PARAMETERS
| Par No. | Length | C. C.T. | (Ra) | Luminous | Input | Input Vol. |
| (mm) | (K) | Flux(lm) | Watt(W) | (VDC) | ||
| 110400100007 | 590 | 3000～6500 | 95 | 600 | 5 | 24 |
| 110400100015 | 590 | 3000～6500 | 95 | 1000 | 9 | 24 |
| 110400100001 | 895 | 3000～6500 | 95 | 850 | 7 | 24 |
| 110400100009 | 895 | 3000～6500 | 95 | 1500 | 13 | 24 |
| 110400100003 | 1200 | 3000～6500 | 95 | 1100 | 9 | 24 |
| 110400100011 | 1200 | 3000～6500 | 95 | 2000 | 18 | 24 |
Note: Different lengths, color temperatures, and lumens can be customized according to customer requirements.

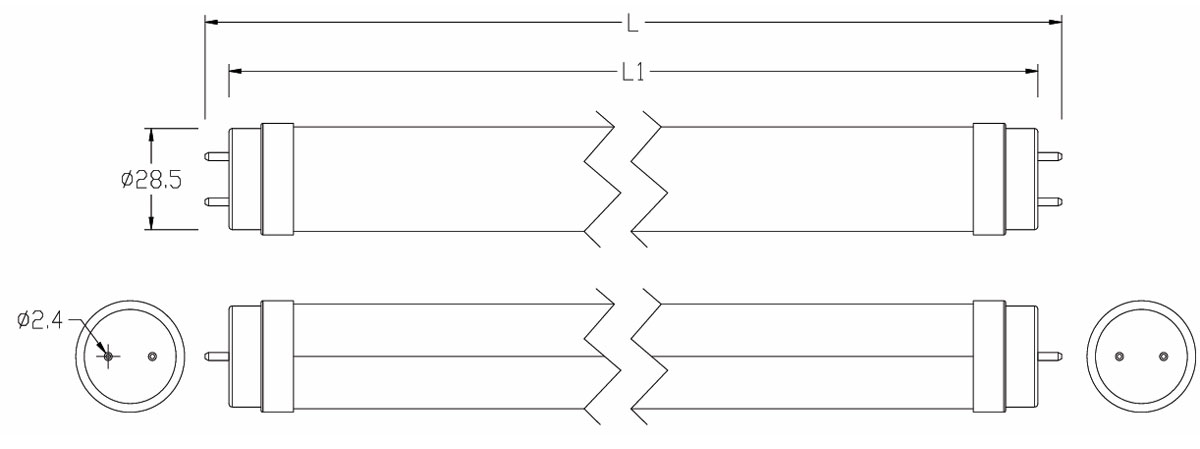

Dimension
Wiring Diagram
 |
Dimension | L1(mm) | L(mm) |
| A | 590 | 604 | |
| B | 895 | 909 | |
| C | 1200 | 1213 |
