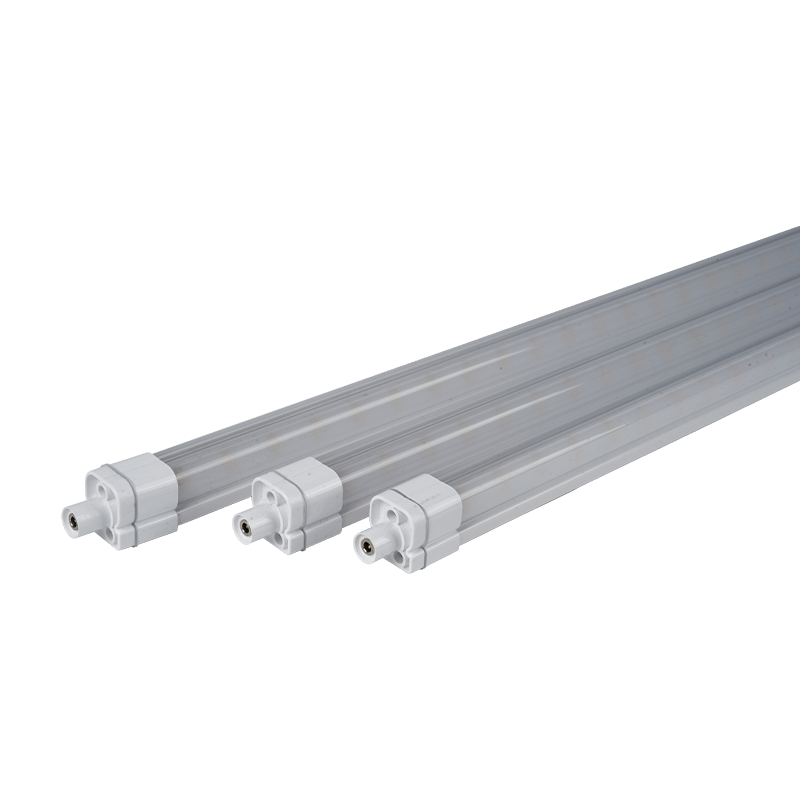

LED Refrigerator Door Frame Light

The door frame of a refrigerated cabinet is where customers look first. The LED Refrigerator Door Frame Light is designed to illuminate products right at the point of selection, giving shelves a bright, inviting look every time a shopper approaches the display.
Refrigerated cabinets often run around the clock, so lighting has to keep up. This door frame light offers a lifetime of up to 50,000 hours, which means far fewer replacements over the years. For supermarkets, convenience stores, and beverage shops, that translates into lower maintenance costs and less downtime for the display cabinet.

KFLY the LED Cooler Lighting Bar Series lighting is an ideal energy-saving lamps, creating the commodity values of shopping experience for customers. Unique optical illumination system enabling uniform glow across displayed merchandise also reduce glare and dark spots. Using high Ra LED for long life. It has an ideal solution that high quality display lights mounting accessories with power do not flicker or color differences.

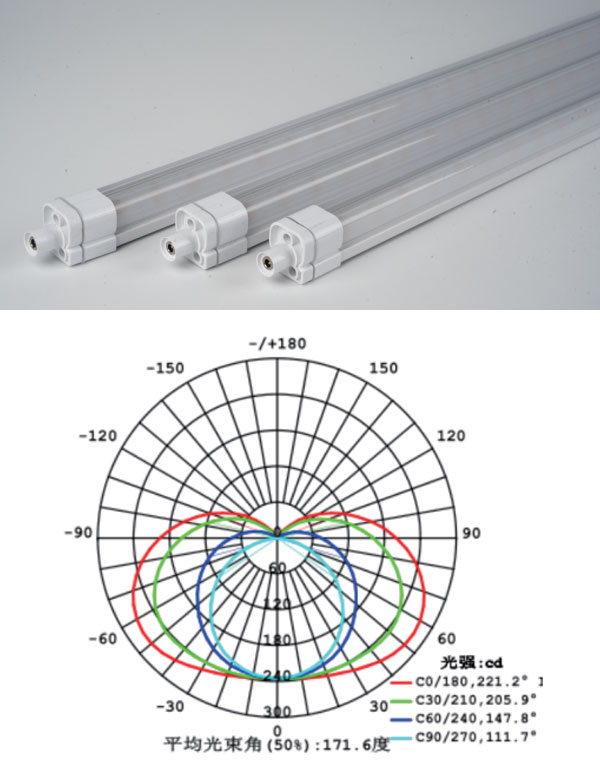

qhcvlpjv1790557692

Feature

  • Material: Aluminum Alloy+PC
  • High light transmission rate, good lighting effect
  • Lnstantaneous light,no flicker , no sound , environmental protection , non-polluting and harmful substances
  • Input DC 24V , More safe
  • Operating Temp: -35℃<Ta<35℃
  • Storage Temp: -40℃<Ts<65℃
  • Lifetime:50,000hours
  • Warranty:5Years

PRODUCT PARAMETERS

Par No. Length C. C.T. (Ra) Luminous Input Input Vol.
(mm) (K) Flux(lm) Watt(W) (VDC)
110400800001 1500 3000 95 1500 13 24
110400800002 1500 4000 95 1500 13 24
110400800003 1500 5000 95 1500 13 24
110400800005 1500 6500 95 1500 13 24
110400800016 1500 3000 95 1800 15 24
110400800017 1500 4000 95 1800 15 24
110400800018 1500 5000 95 1800 15 24
110400800019 1500 6500 95 1800 15 24
110400800020 1500 3000 95 2000 17 24
110400800021 1500 4000 95 2000 17 24
110400800022 1500 5000 95 2000 17 24
110400800023 1500 6500 95 2000 17 24

Note: Different lengths, color temperatures, and lumens can be customized according to customer requirements.

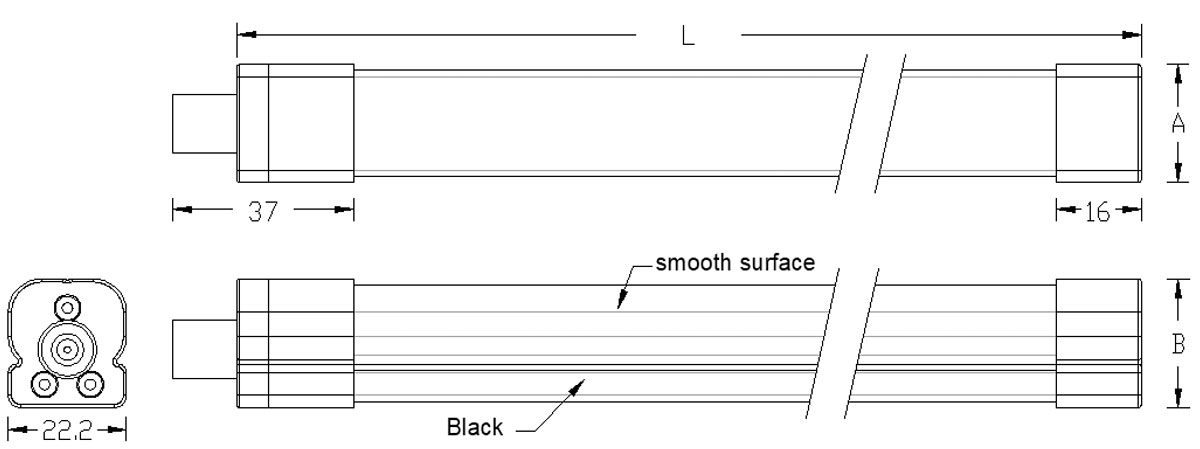

Dimension

gtrxisne1790557776

Wiring Diagram

Dimension L A B
A 1500 22.2 24.2
