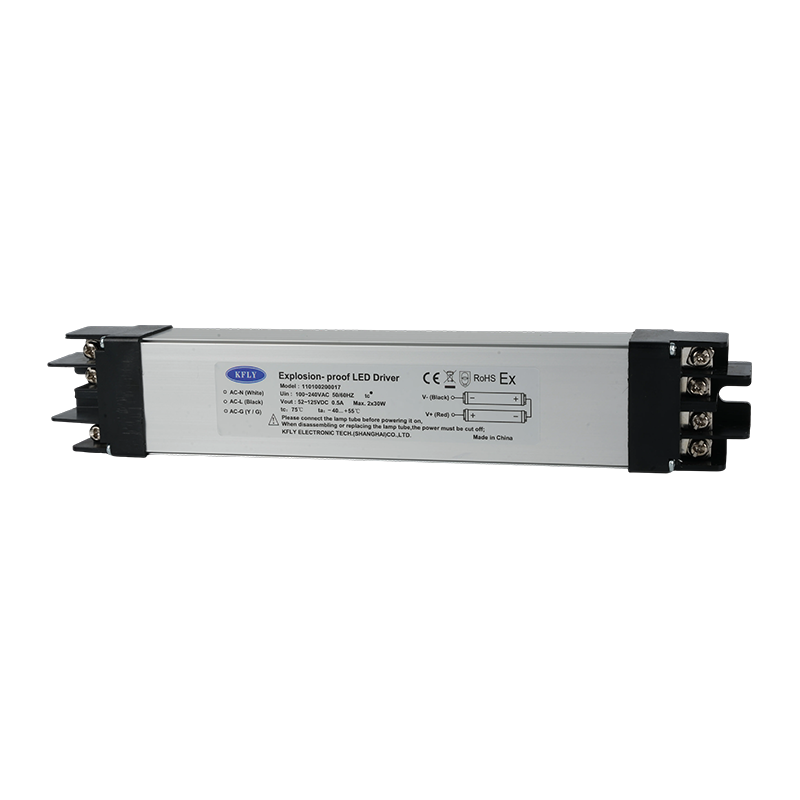

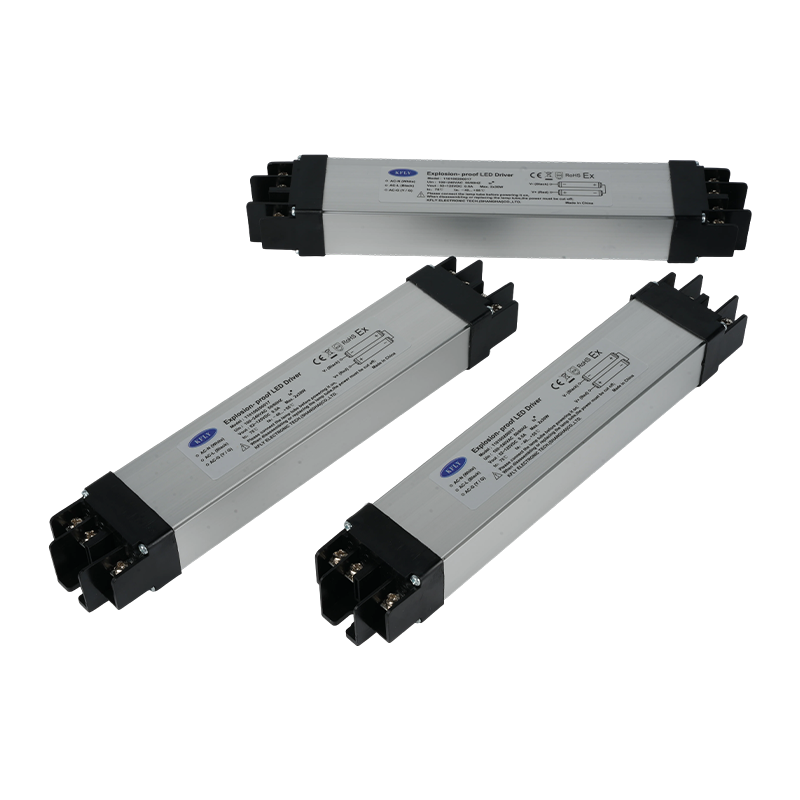

Explosion-proof Sand-filled LED Control Unit
Highlights and Features
1. DC 52–125V output voltage; constant current output design
2. Efficiency up to 85%
3. Isolated, high power factor architecture
4. Encapsulated design; suitable for use in explosion-proof lighting applications
5. Certified for electrical safety
6. Suitable for Class I luminaires
7. 5-year warranty
Introduction
KFLY’s 15W×2 and 30W×2 series of fixed-output-current LED drivers are suitable for both explosion-proof and general lighting applications. These drivers meet global certification standards and feature comprehensive built-in protection against abnormal operating conditions, ensuring safety even in the event of wiring faults or LED board damage. Designed to Class I luminaire standards for easy installation, the units utilize internal circuitry and components engineered to meet standards for sand-filled (Ex q) explosion-proof equipment, with internal cavities fully encapsulated in silicone. Additionally, their high efficiency meets energy-saving requirements, and optimal EMC performance was a key priority during development. Meticulously designed and rigorously tested, these drivers perform reliably across diverse lighting conditions; their exceptional durability offers customers peace of mind and reduces maintenance costs.
Model Information
| Model No. | Input Voltage Range | Rated Output Voltage | Rated Output Current |
| 110100200018 | 100 ～ 240Vac | 52 ～ 125Vdc | 0.25A |
| 110100200017 | 0.5A |
Input Ratings / Characteristics
| Model No. | 110100200018 | 110100200017 | |
| Nominal Input Voltage | 100～240 Vac | ||
| Input Voltage Range | 100～264 Vac | ||
| Nominal Input Frequency | 50～60 Hz | ||
| Input Frequency Range | 47～63 Hz | ||
| Input Current (typ.) | 0.15 typ. | 0.3 typ. | |
| Efficiency ¹) @ 230Vac | 85% typ. | ||
| Inrush Current Peak >50%, Duration | 24.5A / 100us | 36.4A / 100us | |
| Max. Quantity of Drivers per Circuit Breaker | B16 | 46pcs | 23pcs |
| C16 | 58pcs | 29pcs | |
| Power Factor @ Full Load | > 0.95 | ||
| Total Harmonic Distortion @ Full Load | Complies with the IEC 61000-3-2 Class C standard | ||
| Leakage Current | < 0.7mA @ 230Vac | ||
1) 100% load (typical value), tested after 30-minute warm-up.
Output Ratings / Characteristics
| Model No. | 110100200018 | 110100200017 |
| Rated Output Voltage | 52.0～125.0Vdc | |
| Output Current Range | 0.25A | 0.5A |
| Max. No-load Output Voltage | 150Vdc | |
| Max. Output Power | 30W | 60W |
| Output Voltage Tolerance | ± 3% | |
| Line Regulation | ± 1% | |
| Load Regulation | ± 3% | |
| Output Ripple | 4.5V | |
| Rise Time | < 50ms | |
| Start-up Time | < 1.0s | |
Mechanical Specifications
| Model No. | 110100200018 | 110100200017 |
| Housing | Aluminum alloy | |
| Unit Weight [kg][lb] | 0.53 1.17 |
0.53 1.17 |
| Cooling System | Natural convection cooling | |
| Commercial Carton: Qty per Carton | 20 pcs | |
| Commercial Carton: Weight per Carton [kg][lb] | 11 24.25 |
11 24.25 |
| Input Terminal | Electrode plate screw-termination connection method | |
| Output Terminal | Electrode plate screw-termination connection method | |
| Noise (at 30cm distance) | Sound Pressure Level (SPL) ＜ 24 dBA | |
Environmental Specifications
| Model No. | 110100200018 | 110100200017 | |
| Ambient Temperature | Operating | -40°C to +55°C | |
| Storage | -40°C to +85°C | ||
| Max. Case Temperature (Tc) | +75°C | ||
| Case Temperature (Tc) for Lifetime Test | +80°C | ||
| Relative Humidity | Operating | 10 to 90% RH (non-condensing) | |
| Storage | 5 to 95% RH (non-condensing) | ||
| Environmental Rating | IP54; suitable for dry and damp environments | ||
| Operating Altitude | Up to 5000 meters | ||
Protection Functions
| Model No. | 110100200018 | 110100200017 |
| Overvoltage Protection | Auto-recovery after fault removal | |
| Overload/Overcurrent Protection | Auto-recovery after fault removal | |
| Short-circuit Protection | Auto-recovery after fault removal | |
| Overtemperature Protection | Auto-recovery after fault removal | |
| Suitable Luminaire Class | Class I, insulation class per IEC 60598 | |
Reliability Data
| Model No. | 110100200018 | 110100200017 |
| Lifetime | 50,000 hours at lifetime-test case temperature | |
| MTTF | 850,000 hours @ ambient temperature +45°C (per Telcordia SR-332, total failure rate below 10%) | |
Safety Standards / Directives
| Model No. | 110100200018 | 110100200017 | ||
| Electrical Safety | UL | UL 8750, Class P, Type "HL", Class 2 output | ||
| CSA | CAN/CSA C22.2 No.250.13 | |||
| CB scheme | IEC 61347-1, IEC 61347-2-13, SELV outputIEC 60335-1, IEC 60335-2-89 including Annex BB, IEC 60335-2-24 including Annex CC | |||
| CCC | GB 17625.1-2012, GB/T 17743-2021; | |||
| GB 19510.1-2009, GB 19510.14-2009 | ||||
| RCM | AS 61347.2.13:2018AS/NZS 61347.1:2016 including Amendment A1 | |||
| CE | Compliant with directives:Low Voltage Directive 2014/35/EU;EMC Directive 2014/30/EU;RoHS Directive 2011/65/EU + (EU)2015/863;ErP Directive 2009/125/EC implementing measures, EU Regulation (EU)2019/2020 | |||
| Ex | Compliant with regulations:GB/T3836.1-2021 Explosive atmospheres Part 1: Equipment general requirements;GB/T3836.2-2021 Explosive atmospheres Part 2: Equipment protected by flameproof enclosure "d" | |||
| Isolation | Input | Output | Enclosure | |
| Input | N/A | 3000Vac | 1800Vac | |
| Output | 3000Vac | N/A | 500Vac | |
| Enclosure | 1800Vac | 500Vac | N/A | |
EMC
| Model No. | 110100200018 | 110100200017 |
| Radiated / Conducted Emission | Complies with BS EN / IEC 55015. Complies with FCC Part 15 Class A | |
| Immunity | Complies with BS EN / IEC 61547 | |
| Electrostatic Discharge (ESD) | IEC 61000-4-2 | ESD, Criterion A¹) or B²)Air discharge: 8kV; Contact discharge: 4kV |
| Radiated Immunity (RS) | IEC 61000-4-3 | RS, Criterion A¹) 80MHz-1GHz, 3V/m,1kHz sine wave / 80% AM modulation |
| Electrical Fast Transient / Burst (EFT/Burst) | IEC 61000-4-4 | 1kV, Criterion A¹) or B²) |
| Surge | IEC 61000-4-5 ANSI C62. 41 | Criterion A¹) or B²)Common-mode: 4kV; Differential-mode: 2kV1.2/50μs, 8/20μs composite wave, source impedance 2Ω (L-N),12Ω (L-PE & N-PE)Meets Category A1, with 2.5kV/100kHz ring wave, Criterion A¹) |
| Conducted Disturbance Immunity (CS) | IEC 61000-4-6 | 150kHz-80MHz, 3Vrms, Criterion A¹) |
| Power Frequency Magnetic Field Immunity (PFMF) | IEC 61000-4-8 | 3A/m, Criterion A¹) |
| Voltage Dips / Interruptions (Dips) | IEC 61000-4-11 | Criterion A¹) or B²); 100% dip; 0.5 cycle; self-recovery;30% dip; 10 cycles; self-recovery |
| Harmonic Current Emission | IEC 61000-3-2 | Class C (230Vac @ 100% load) |
| Voltage Fluctuation and Flicker | IEC 61000-3-3 | Pst ≤ 1.0; dmax ≤ 4%; Plt ≤ 0.65; dc ≤ 3.3%; Tmax ≤ 500ms |
1. Criterion A: Normal operation within specification limits.
2. Criterion B: Temporary degradation or loss of function, self‑recovery permitted.

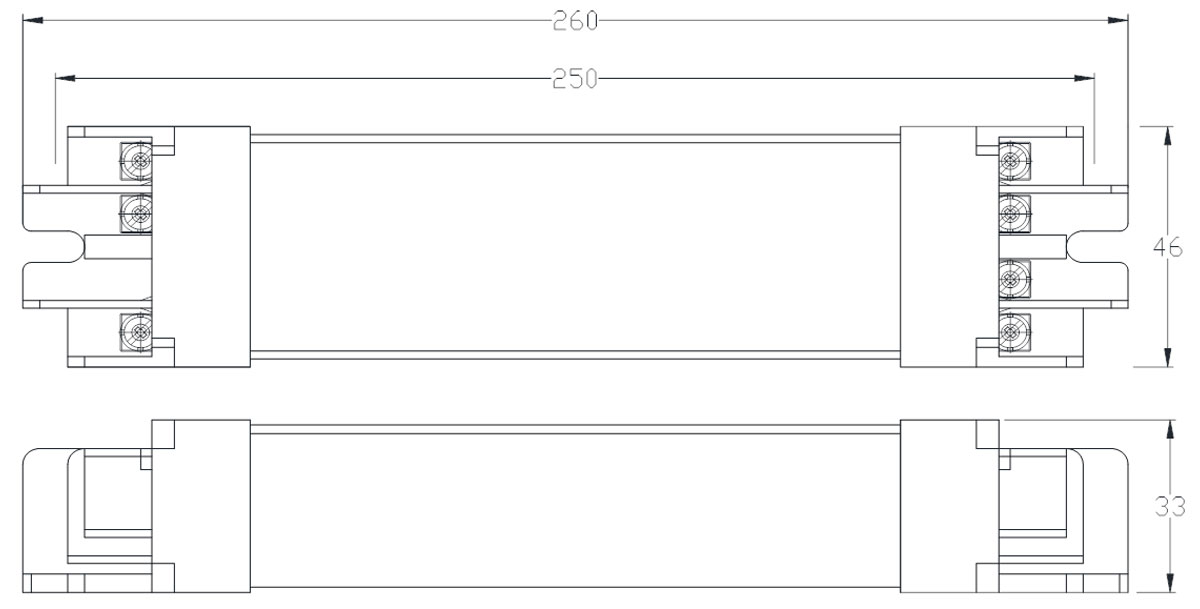

Dimension Drawing
Dimensions (L × W × H)
| 110100200018 | 260 x 46 x 33mm ( 10.24 × 1.81 × 1.30 inch ) |
| 110100200017 | 260 x 46 x 33mm ( 10.24 × 1.81 × 1.30 inch ) |

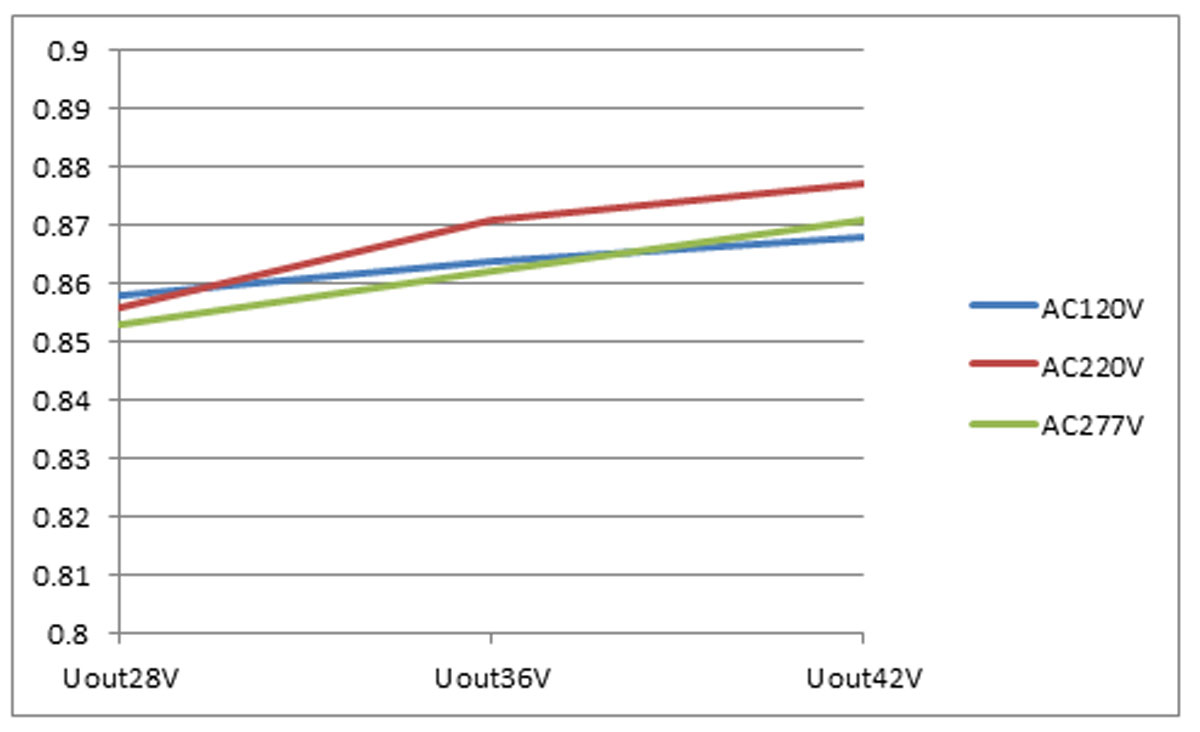

Efficiency vs. Output Power Curve

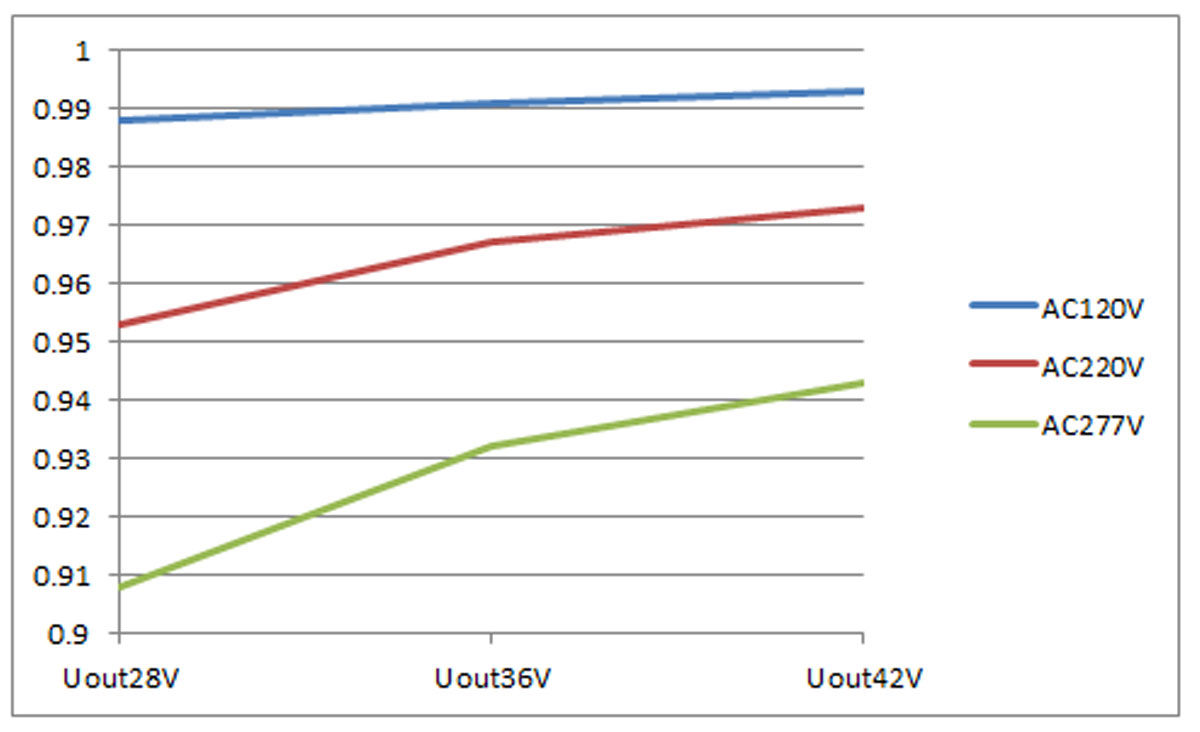

Power Factor vs. Output Power Curve

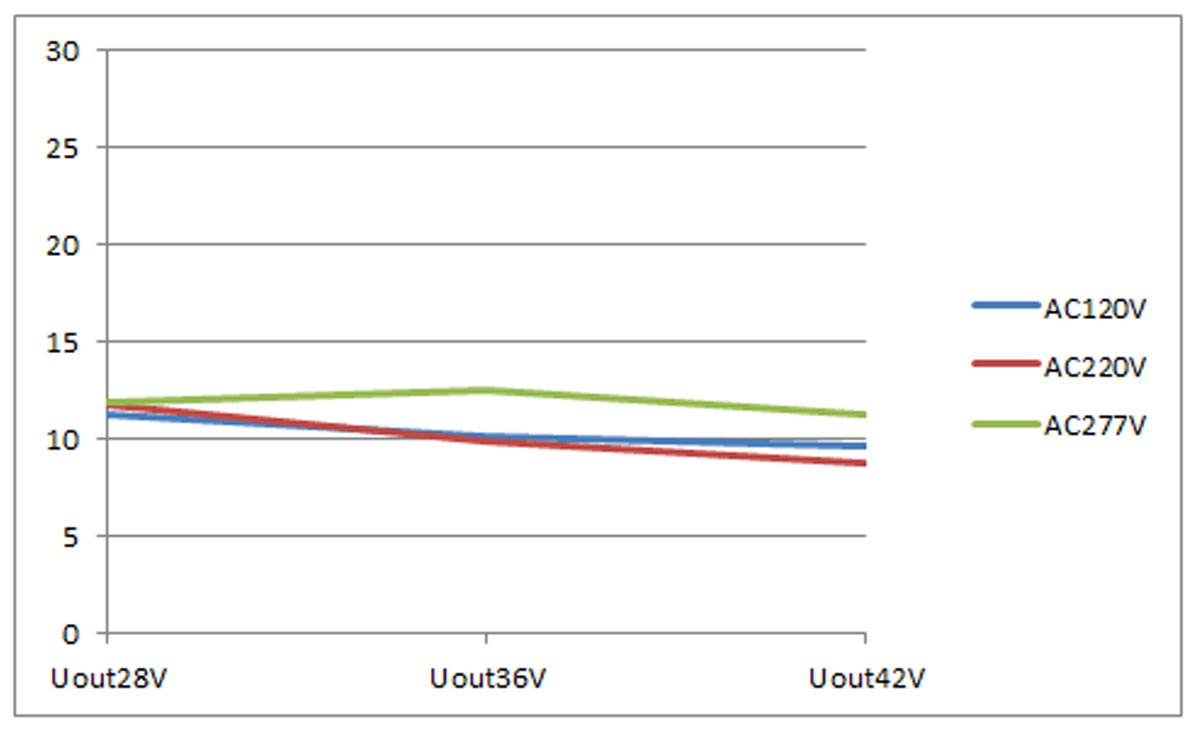

Total Harmonic Distortion (THD) vs. Output Power Curve
