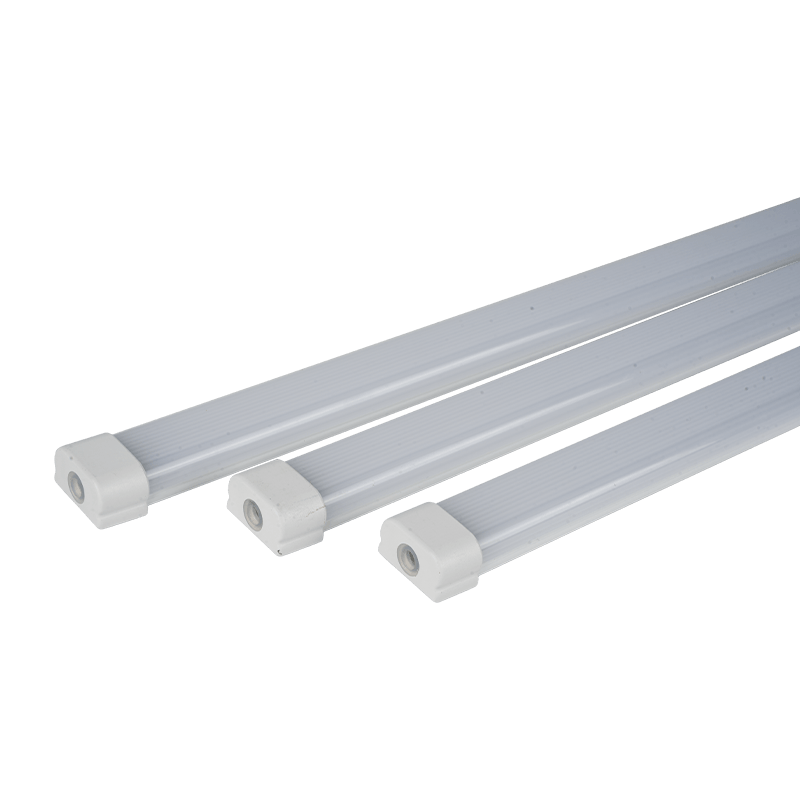

D-Shaped LED Refrigerator Light

In commercial refrigeration, good lighting helps products sell. The D-Shaped LED Refrigerator Light with a plastic housing is designed for refrigerated display cabinets, offering clean, dependable illumination that keeps every shelf bright and inviting.
The light delivers stable, flicker-free output, which is easier on the eyes of shoppers and staff and gives products a consistent, natural appearance. It also runs silently, with no humming or buzzing, keeping supermarkets, convenience stores, and beverage shops quiet and comfortable.
The slim D-shaped profile suits the limited space inside refrigerated cabinets and blends neatly into the display without blocking the view of products. The plastic housing keeps the fixture lightweight and easy to handle, making installation and replacement simple.

KFLY the LED Cooler Lighting Bar Series lighting is an ideal energy-saving lamps, creating the commodity values of shopping experience for customers. Unique optical illumination system enabling uniform glow across displayed merchandise also reduce glare and dark spots. Using high Ra LED for long life. It has an ideal solution that high quality display lights mounting accessories with power do not flicker or color differences.

Typical Applications

Supermarket refrigerated display cabinets
Beverage and dairy coolers
Convenience store freezers
Vertical and horizontal commercial refrigerators
Cold storage display areas

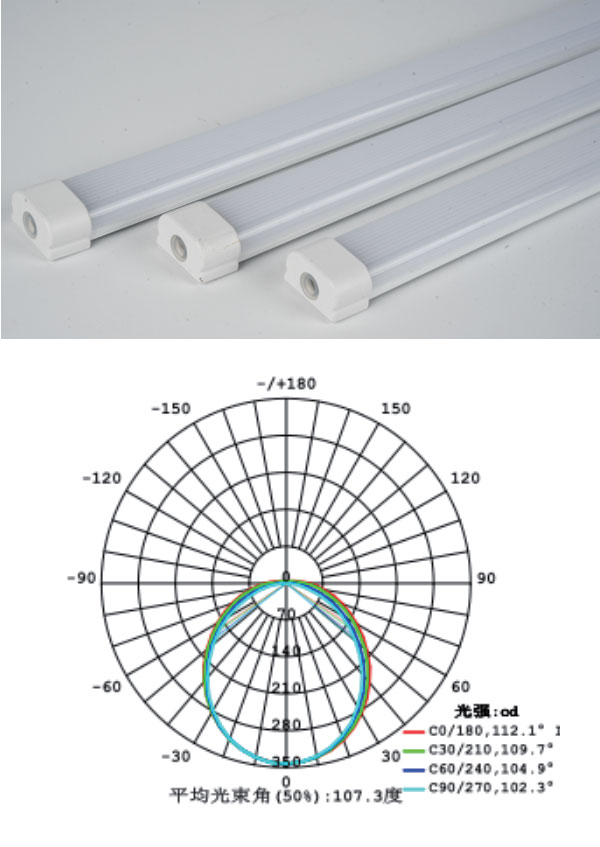

fzopdgdq1790556986

Feature

  • Material: PC
  • High light transmission rate, good lighting effect
  • Lnstantaneous light,no flicker, no sound, environmental protection, non-polluting and non-harmful substances
  • Small dimensions, saves space.
  • Input DC 24V , More safe
  • Operating Temp: -30℃<Ta<40℃
  • Storage Temp: -40℃<Ts<65℃
  • Lifetime:40,000hours
  • Warranty:3Years

PRODUCT PARAMETERS

Par No. Length C. C.T. (Ra) Luminous Input Input Vol.
(mm) (K) Flux(lm) Watt(W) (VDC)
110400200001 600 3000~6500 85 950 8 24
110400200002 900 3000~6500 85 1450 12 24
110400200003 1200 3000~6500 85 1750 15 24
110400300001 600 3000~6500 85 480 4 24
110400300002 900 3000~6500 85 700 6 24
110400300003 1200 3000~6500 85 950 8 24

Note: Different lengths, color temperatures, and lumens can be customized according to customer requirements.

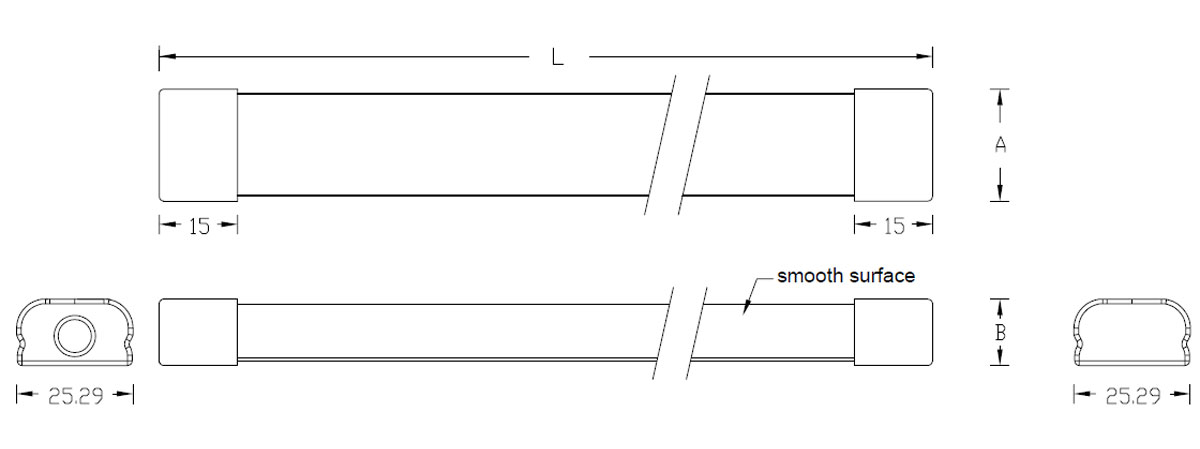

Dimension

snlshokm1790557073

Wiring Diagram

Dimension L A  B
A 600 25.29 14.43
B 900 25.29 14.43
C 1200 25.29 14.43
