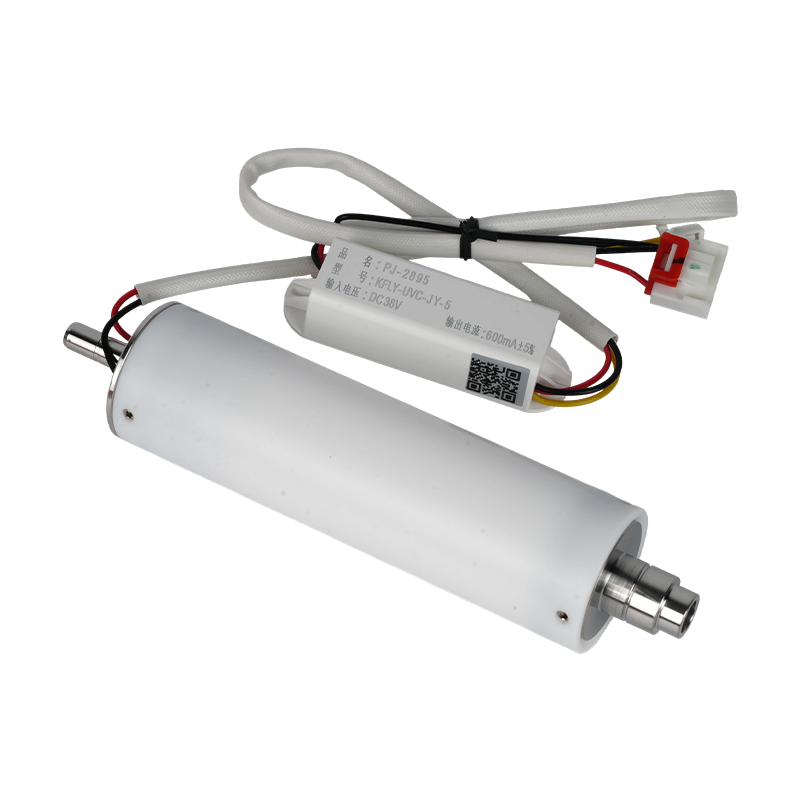

Integrated UVC-LED Dynamic Sterilization Module

Product Description

This is a high-power UVC-LED flow-through disinfection module. It utilizes imported high-power UVC-LED chips that emit deep ultraviolet light at wavelengths of 270–280 nm, achieving efficient physical sterilization. The module body is constructed from UV-resistant, food-contact grade PTFE, offering excellent chemical and high-temperature resistance; it is safe, reliable, and suitable for direct use in drinking water treatment applications. With an IP67 protection rating and additional airtightness testing standards, the module is ideal for water-contact equipment requiring strict sealing—such as water purifiers, water dispensers, and water heaters—and operates stably within a temperature range of -30°C to 55°C. It is safe for water contact, mercury-free, and easy to dispose of.

Applications

1. This module is suitable for drinking water treatment applications.
2. It is widely used in products such as water dispensers, ice makers, humidifiers, air purifiers, aroma diffusers, pet water fountains, and dishwashers.

Reference Standard

GB/T 4827-2015

Testing Methods

1. UV Optical Power Test: Using an integrating sphere, the module's UV optical power output is tested to be greater than 110 mW.
2. UV Wavelength Range Test: Using an integrating sphere, the wavelength range is verified to be 270–280 nm.
3. Sealing Performance Test: No fogging occurs when powered on for 30 seconds under 1 kg water pressure; additionally, the unit must show no visible water ingress inside the LED glass cover after maintaining a 0.03 MPa water inlet pressure for 15 minutes, and no water entry into the UV assembly after submersion at a depth of 1.5 m for 24 hours.
4. High/Low-Temperature Test: The product operates reliably within the temperature range of -30°C to 55°C and can be stored reliably within the range of -40°C to 85°C.
5. Airtightness Test: Maintained at 0.1 MPa for 20 seconds; leakage < 20 Pa, pass rate > 99%.

Safety Warnings

1. This product emits deep ultraviolet (DUV) light when powered on; such radiation is harmful to human skin and eyes. Avoid exposure to DUV light while the LED is operating. Appropriate protective measures—such as safety goggles and protective clothing—must be taken to shield the body; do not look directly at the UV light without protective eyewear. Do not look directly into the light source or at the LED from any angle while it is operating.
2. Looking directly at the deep ultraviolet light emitted by this product with the naked eye is strictly prohibited at all times.

Model Information

Dimension Drawing

Module dimensions: Φ32 × 17 mm (diameter × height)
Tolerance: ±0.5 mm
