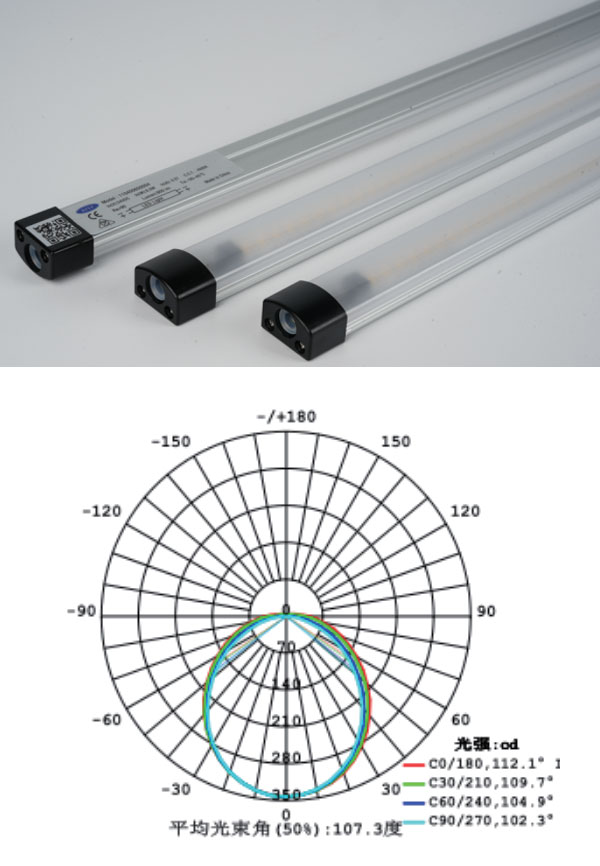

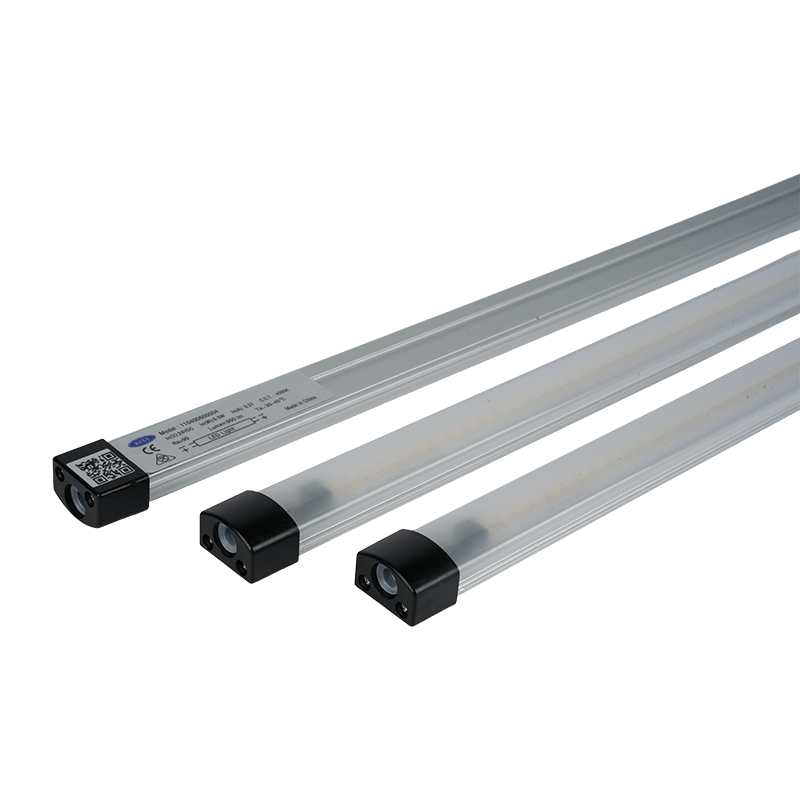

Slim LED Refrigerator Strip Light

Inside a refrigerated display cabinet, every centimeter counts. The Slim LED Refrigerator Strip Light is designed for tight spaces, delivering clear, even illumination along the shelf without taking room away from the products on display.
Compared with traditional fluorescent lighting, LED strip lights use less energy and generate less heat, which reduces the extra load on the cooling system. Their long service life also cuts down on replacement and maintenance, ideal for cabinets running around the clock.
For retailers, distributors, and refrigeration equipment manufacturers, the Slim LED Refrigerator Strip Light combines a space-saving profile with safe low-voltage operation, making it a practical choice for professional refrigerated display lighting.

KFLY the LED Cooler Lighting Bar Series lighting is an ideal energy-saving lamps, creating the commodity values of shopping experience for customers. Unique optical illumination system enabling uniform glow across displayed merchandise also reduce glare and dark spots. Using high Ra LED for long life. It has an ideal solution that high quality display lights mounting accessories with power do not flicker or color differences.

wccvbcvz1790557330

Feature

  • Material: Aluminum Alloy+PC
  • High light transmission rate, good lighting effect
  • Lnstantaneous light,no flicker , no sound , environmental protection , non-polluting and harmful substances
  • Small dimensions, save space
  • Input DC 24V , More safe
  • Operating Temp: -30℃<Ta<40℃
  • Storage Temp: -40℃<Ts<65℃
  • Lifetime:50,000hours
  • Warranty:5Years

PRODUCT PARAMETERS

Par No. Length C. C.T. (Ra) Luminous Input Input Vol.
(mm) (K) Flux(lm) Watt(W) (VDC)
110400500011 600 3000~6500 95 800 6.5 24
110400500001 900 3000~6500 95 1100 9.5 24
110400500003 1200 3000~6500 95 1500 13 24
110400600011 600 3000~6500 95 500 4 24
110400600001 900 3000~6500 95 600 5 24
110400600003 1200 3000~6500 95 800 6.5 24

Note: Different lengths, color temperatures, and lumens can be customized according to customer requirements.

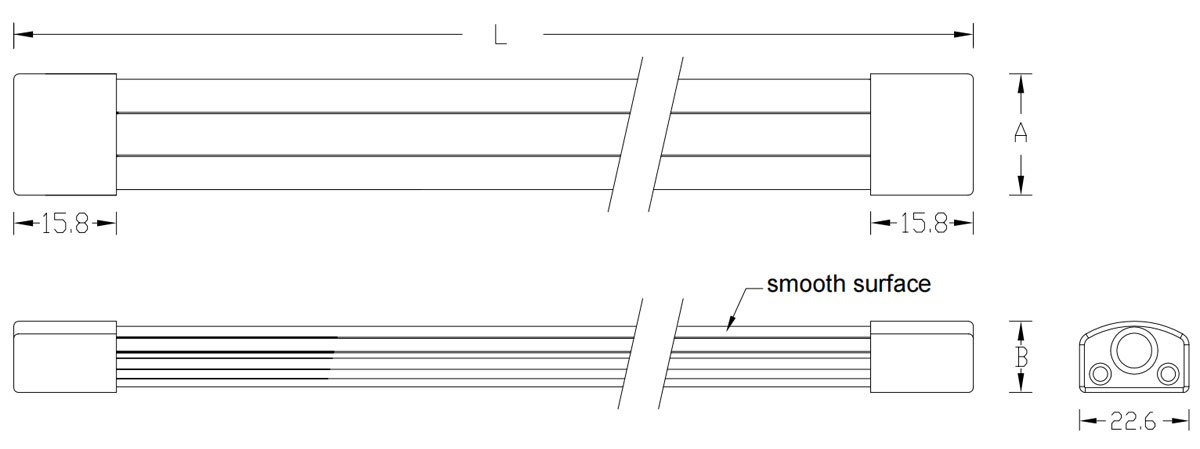

Dimension

cskcuicy1790557402

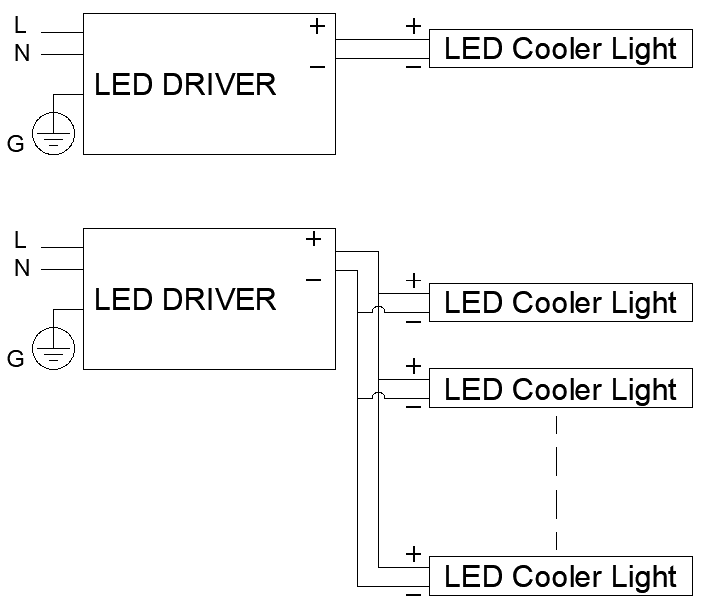

Wiring Diagram

Dimension L A B
A 600 22.6 24.7
B 900 22.6 24.7
C 1200 22.6 24.7
