Over Voltage Protector
In LED lighting systems, factors such as grid fluctuations, the switching of inductive loads, and lightning-induced surges often generate transient overvoltages; these are primary causes of premature LED driver failure and frequent lighting malfunctions. Designed specifically for LED drivers and standard ballasts, this overvoltage protection device provides a reliable safety barrier for lighting fixtures when installed in the power supply line.
Rated for 220V AC operation at 50/60Hz, the device is compatible with standard mains power environments. It is suitable for applications including LED street lights, tunnel lights, industrial high-bay lights, panel lights, and landscape lighting. By effectively reducing driver failures caused by overvoltage, it extends the service life of the lighting fixtures and lowers long-term maintenance costs.
Product Photo

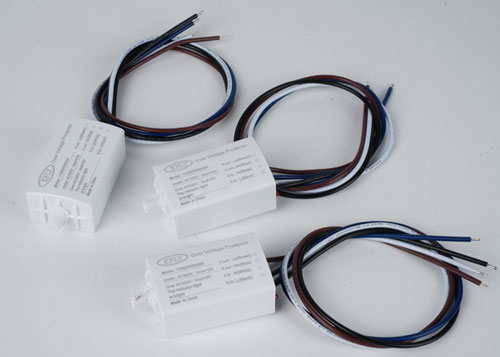

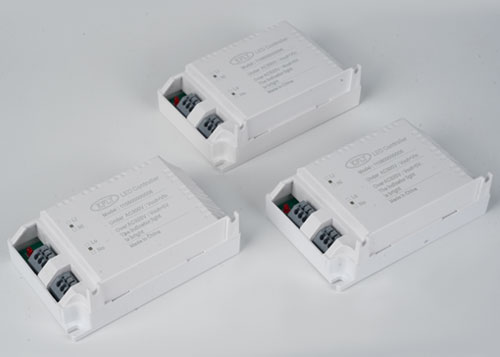

| Appearance A | Appearance B |
 |
 |
Specifications
| Operating Voltage: | 220 VAC , 50/60 HZ |
| MCOV(The maximum continuous operating voltage) : | 277 VAC |
| VPR(Voltage protection limit): | ≥310 VAC |
| IN (Standard Continuous working current IN): | 2 A |
| Maximum working current: | ＜4 A |
| Response time: | ＜25 ns |
| Operating Temperature: | -10～+50℃ |
Applicable LED driver / general Ballast Overvoltage Protection
Dimension Drawing

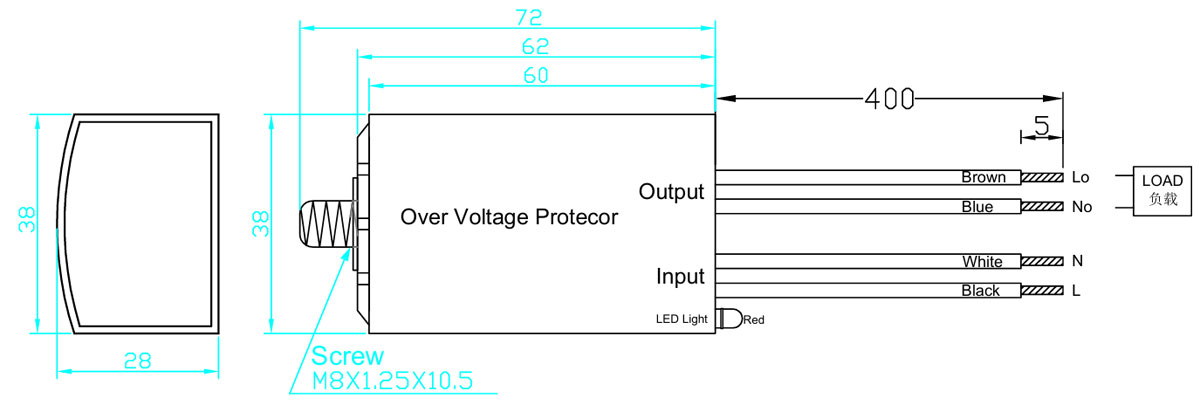

Appearance A
Unit (mm)

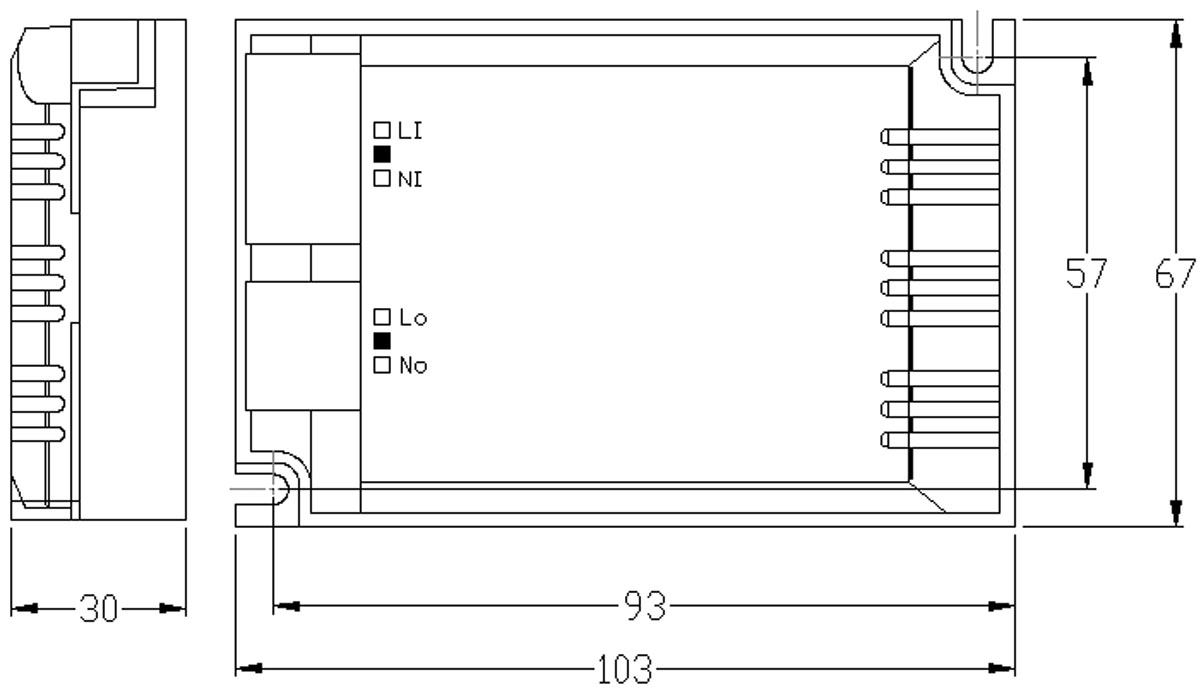

Appearance B
Unit (mm)
Dimensions (L×W×H)
| 110800000004 | 72×38×28mm |
| 110800000006 | 103×67×30mm |
